Example Scan Results

This page collects example scan outputs from di-test. These are point-in-time snapshots demonstrating what the tool produces.

FinCap — Visual Pattern Scan

A visual pattern scan was run against the FinCap Our Team page as a proof of concept.

Key findings (52 total): 20 heading-like candidates (team member names using <p class="h3"> instead of <h3>), 22 card-like candidates (repeated <article> structures), 3 government identity checks (logo found, no copyright notice, no privacy link), 2 link quality issues (new window warnings), 1 disclosure widget, 1 heading text quality finding (empty heading), 1 skip link assessment, 1 page title check, and 1 print stylesheet reminder.

File	Description
Scan Report (Markdown)	Detailed findings with analysis and recommendations
Scan Report (Word)	Same report in .docx format
Findings JSON	Structured JSON output with all 52 findings

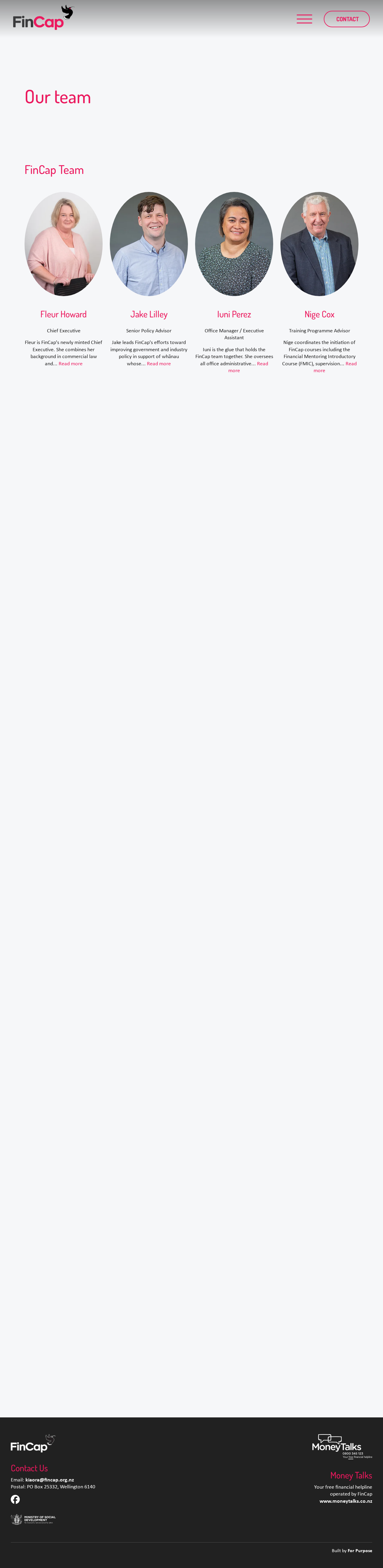

Full Page Screenshot	Full-page capture
Highlighted Screenshot	Red overlays on flagged elements

Sample Finding (JSON)

{
  "url": "https://www.fincap.org.nz/our-team/",
  "type": "Heading-like content",
  "reason": "This appears to function as a heading but is not marked up as one. The element uses a <p> tag with class 'h3' and has visual characteristics of a heading: larger font size (30px vs 18px body), heavier weight (500 vs 400), isolated on its own line, with vertical margin separation.",
  "location": {
    "cssSelector": "section:nth-of-type(2) article:nth-child(1) p.h3.card-title",
    "xpath": "/html/body/main/section[2]/div/div[2]/div[1]/article/div[2]/p[1]"
  },
  "visual": { "fontSize": "30px", "fontWeight": "500" },
  "screenshot": "our-team-item0.png",
  "htmlSnippet": "<p class=\"h3 card-title mb-4\">Fleur Howard</p>",
  "confidence": 0.95
}

A CWAC scan was run against msd.govt.nz on 2026-02-24, crawling 50 pages with axe-core, language, and reflow audits enabled.

Metric	Value
Pages scanned	50
Axe-core issues	27 (3 critical, 24 serious)
Language audit	All pages analysed (Flesch-Kincaid grade levels recorded)
Reflow audit	0 overflow issues

Top Axe-core Findings

Impact	Rule	Description	Count
Critical	`image-alt`	`<img>` elements missing alternative text	3
Serious	`list`	Lists not structured correctly	24

Scan Result Files

File	Description
Axe-Core Audit	All axe-core findings across 50 pages
Language Audit	Flesch-Kincaid and SMOG readability scores
Reflow Audit	Horizontal overflow checks at 320px
Pages Scanned	List of all 50 pages crawled
